So, in this outcome, u must be able to;
-Describe how a current carrying coil in a magnetic field experiences a turning force:
To describe this, 1st u need a wire(conductor) and shape it like a coil in diagram1.

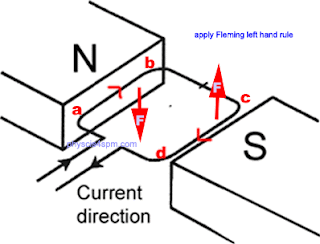

Then bring this coiled wire in between a permanent magnet. After that u connect both end of the wire to a battery. As a result,current will be supplied through the coil a-b & c-d as shown in diagram 2.
a-b & side c-d are in different direction.
- In side a-b, apply Fleming Left hand rule, u'll get a force acting downward.
Thus side a-b will pushed downward.
- In side c-d, applying Fleming left hand rule, u'll get a force acting upward.
This caused side c-d to move upward.

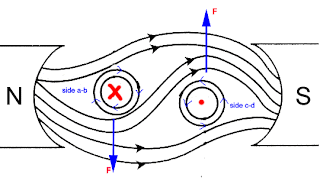

- As a result, a turning effect in both sides turn the coil rotating anticlockwise as shown in
diagram 3 below.
